Ritec Automatic CNC Press Brake

val

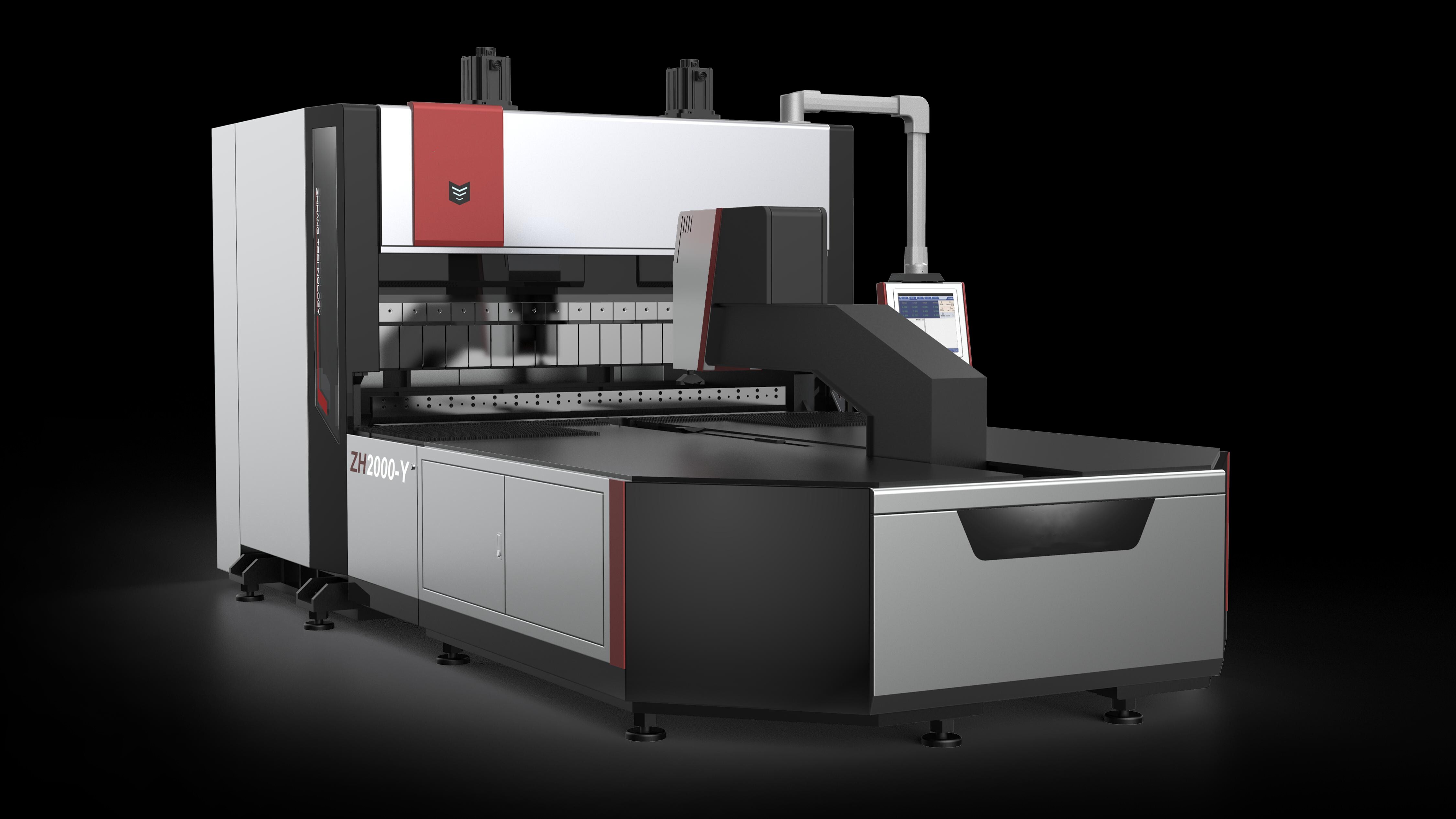

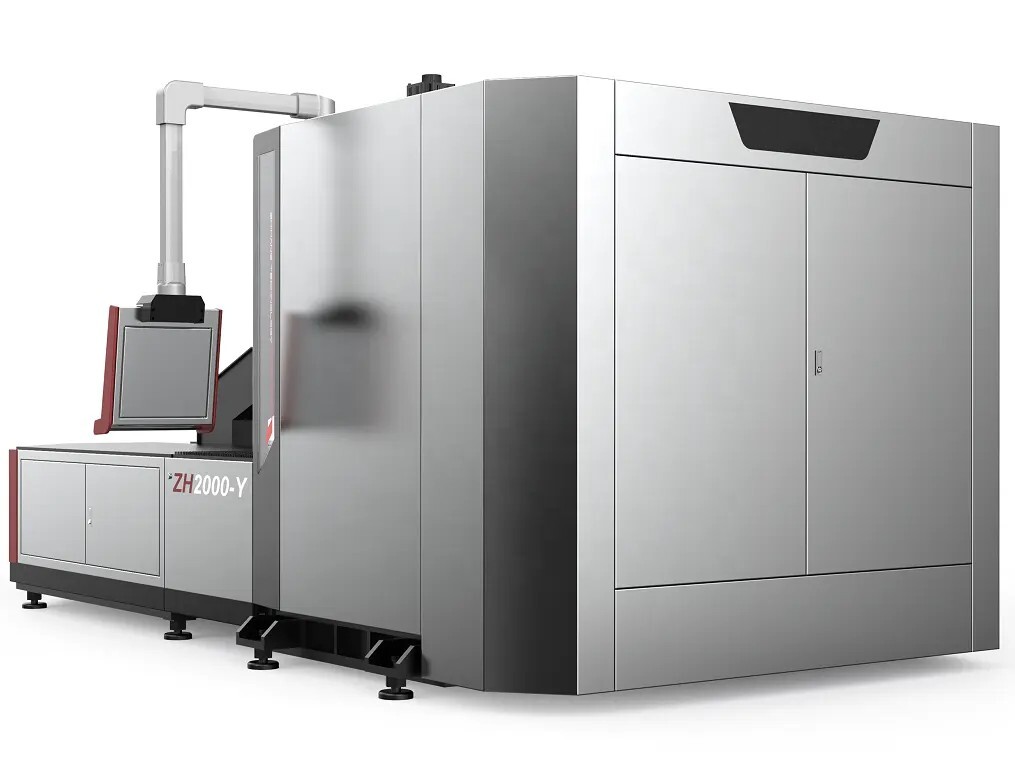

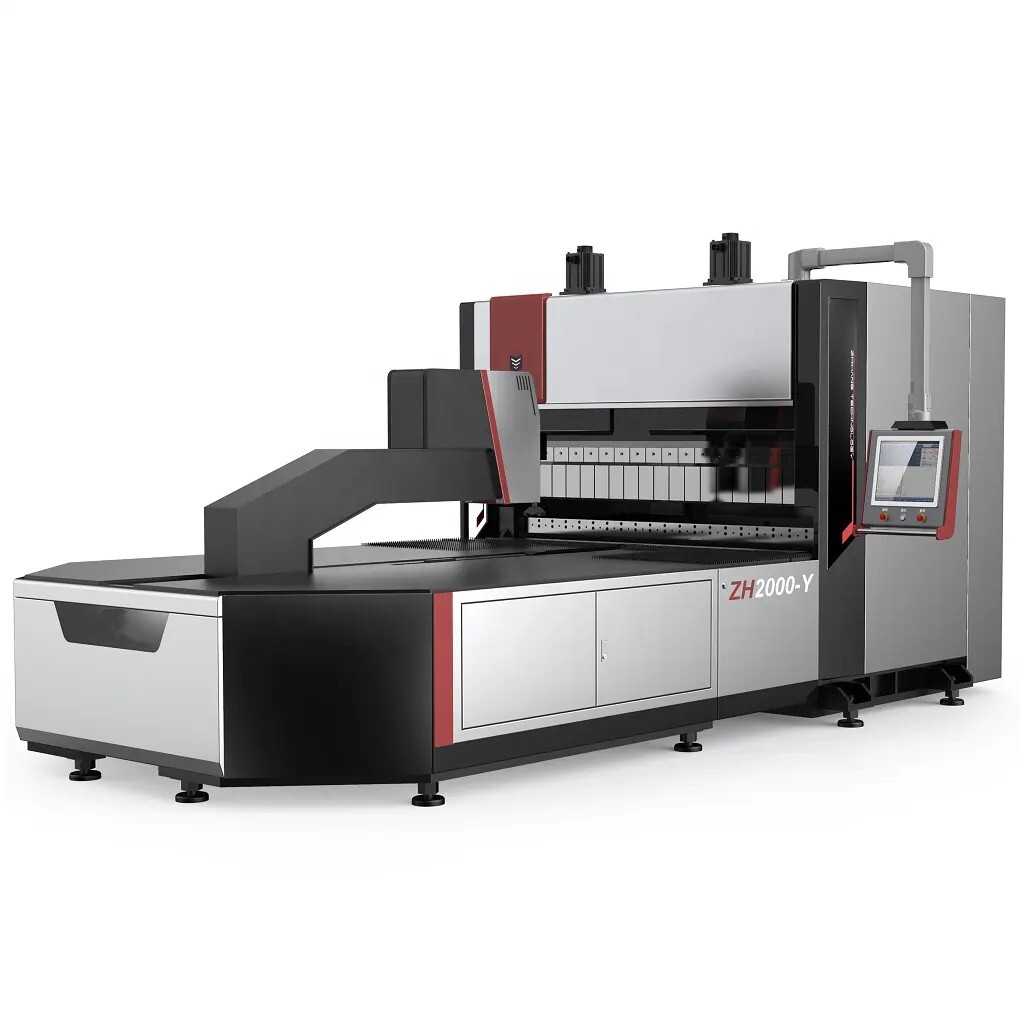

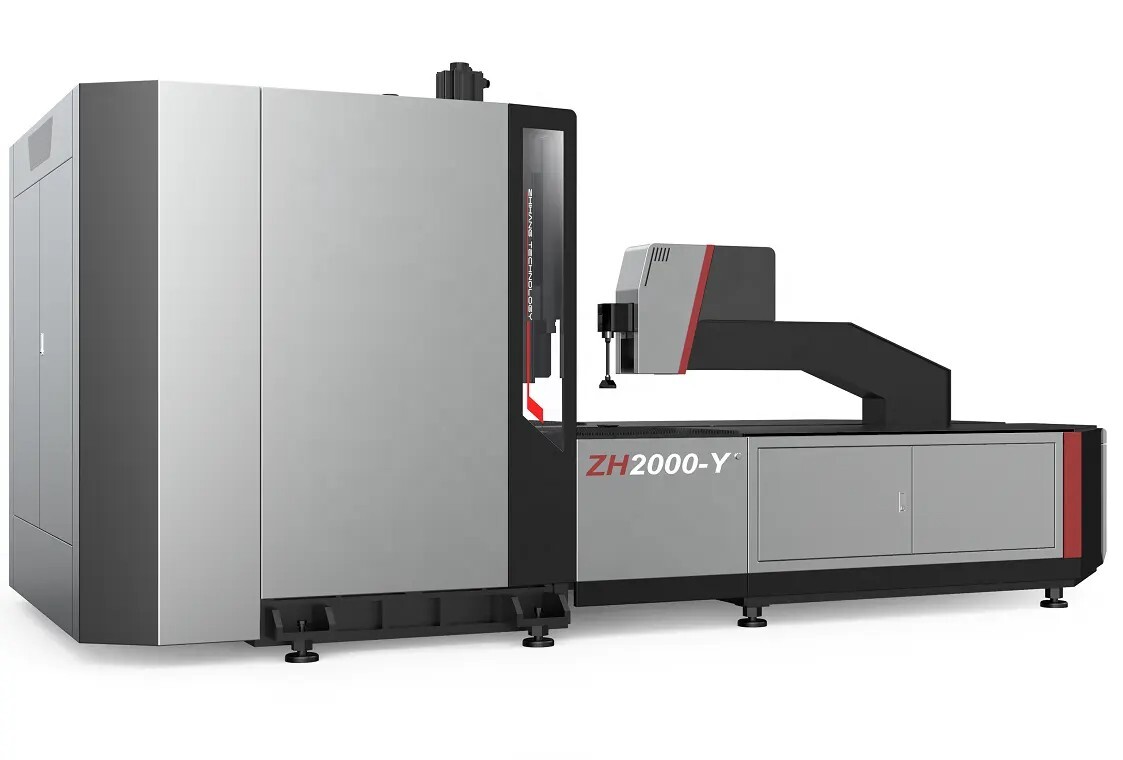

Ritec Automatic CNC Press Brake Machine is an important milestone in the field of sheet metal bending towards fully automated production. It can achieve bending of various complex shapes such as right angles, non-right angles, arcs, and up and down bends without molds. It can complete multi-sided bending through one positioning and is widely used in the field of metal forming in different industries and workpieces.

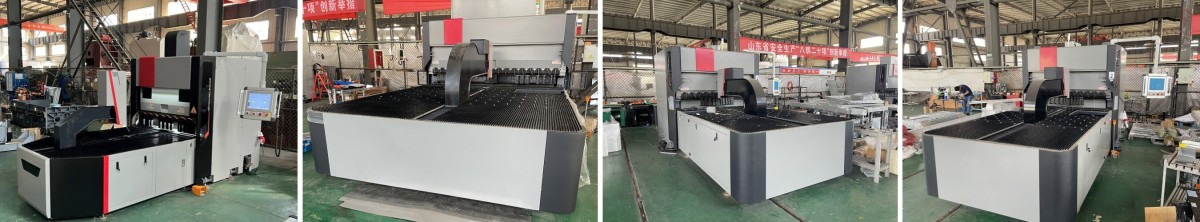

cnc bending machines.jpg


No.DescriptionZH-1200X/ZH-1600YZH-2000X/ZH-2000YZH-2500X/ZH-2500Y
1Bending Length1200 mm1600 mm2000 mm
2Plate Length1300 mm1700 mm2100 mm
3Plate Width1250 mm1450 mm1450 mm
4Bending Height150 mm175 mm175 mm
5Min Forming Size (Four sides)200*140 mm200*140 mm200*140 mm
6Min Forming Size (One side)140 mm140 mm140 mm
7Min Radius1.2 mm1.2 mm1.2 mm
8Bending Speed0.25 s/time0.25 s/time0.25 s/time
9Opening Height190 mm190 mm190 mm
10Angle0-180 °0-180 °0-180 °
11Material ThicknessMax: 3.0mm, Min: 1.2mmMax: 3.0mm, Min: 1.2mmMax: 3.0mm, Min: 1.2mm
12Numerical SystemSYNTECSYNTECSYNTEC
13Operation SystemWIN7+OSWIN7+OSWIN7+OS
14Number SystemStandard 12 axes, 13-15 optionalStandard 13 axes, 14-15 optionalStandard 13 axes, 14-15 optional
15Machine Dimension (L x W x H)4000 x 1750 x 2500 mm4500 x 2000 x 2600 mm4800 x 2550 x 2700 mm
16Machine WeightAbout 12TAbout 16TAbout 19T


Work Video of The CNC Press Brake Machine

val


Features Of CNC Automatic Press Brake Machine

val


Ritec Automatic CNC Press Brake Bending Machine can process sheet metal without molds and can process various complex shapes. It can be used to bend right angles, non-right angles, arcs, up and down folds and other complex shapes, and is used in the field of metal forming for different industries and workpieces. This Press Brakes is equipped with a pure electric servo system, replacing hydraulic drive, with the advantages of environmental protection, high speed, high precision and maintenance-free.


cnc press brakes (4).jpg


Casting Body

The equipment's core frame is made from premium QT500-7 and HT300 castings, ensuring robustness. Rigorous finite element analysis and a triangular interconnection design enhance stability against high tonnage impacts.

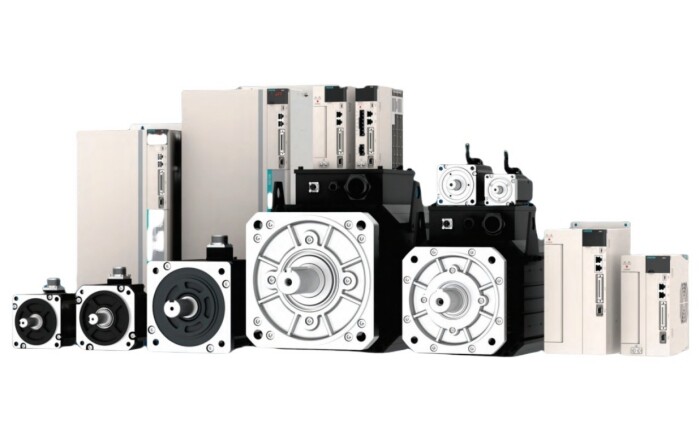

Japan Sanyo Servo Motor

Utilizes a servo-driven hydraulic pump for primary power, replacing traditional asynchronous motors. This setup reduces noise and oil heating significantly while achieving over 50% energy savings.

cnc press brakes (2).jpg


cnc press brakes (5).jpg

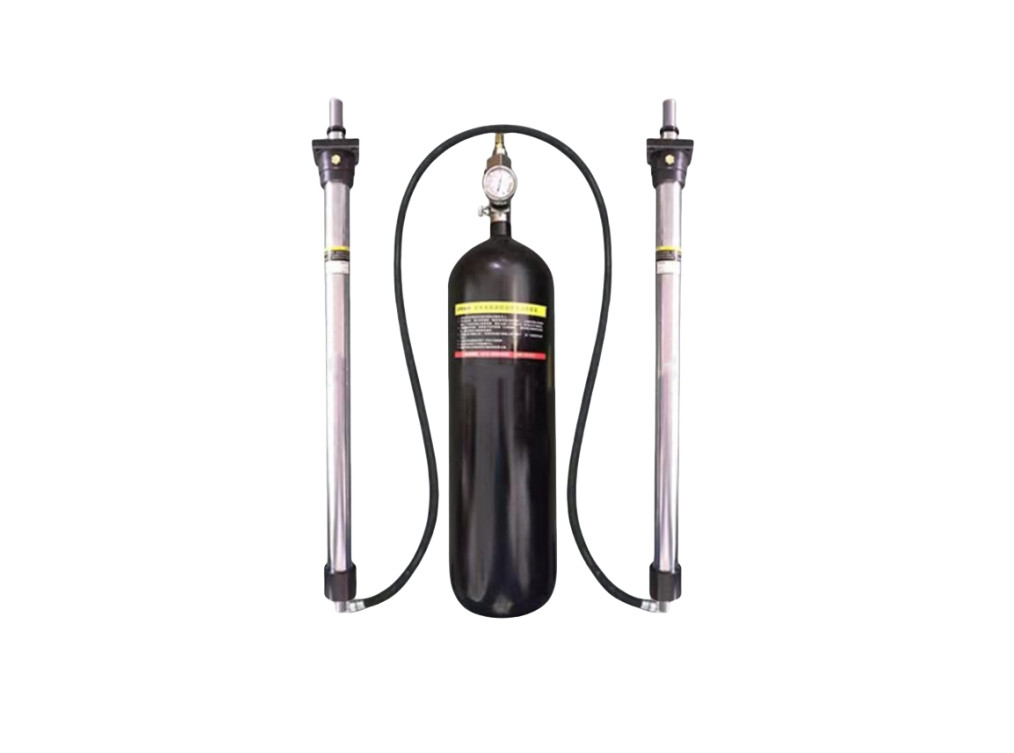

Nitrogen Balancing System

High-pressure nitrogen balances the weight of spindle parts, reducing motor load and enhancing the machine's precision and operational speed.

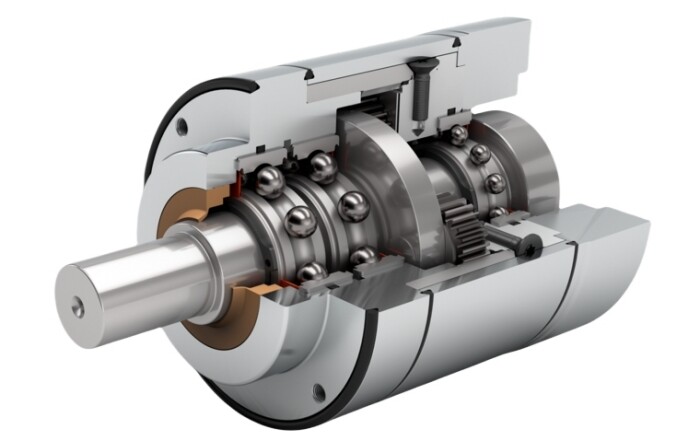

France Modori Reducer

Features an optimized cylinder selection that reduces friction and improves transmission efficiency. The design includes IP65 protection and deep groove ball bearings, enhancing precision and torsional stiffness for efficient, quiet operation.





    cnc press brakes (3).jpg


ball screw linear.jpg.jpg
