CNC Turret Punch Press: Detailed Explanation of Structure, Principles, and Application Fields

The CNC turret punch press is one of the indispensable core pieces of equipment in modern sheet metal processing. Through digital program control, it achieves high-speed, high-precision, and highly flexible stamping of metal sheets, greatly improving production efficiency and automation levels.

I. Main Structural Components

A CNC turret punch press can be considered a highly integrated mechatronic system. Its main structure can be divided into the following parts:

Machine Bed and Frame:

This is the basic structure of the equipment, usually made of high-strength cast iron or welded steel plates, and undergoes precise aging treatment to ensure extremely high rigidity and stability. Its function is to withstand the huge impact force and torque generated during the stamping process, ensuring processing accuracy.

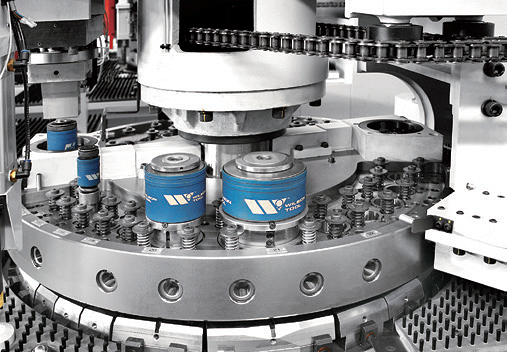

Turret:

1，The core component. It is usually divided into upper and lower turntables. The upper turntable installs the upper die (punch), and the lower turntable installs the lower die (die).

2，The turntable has multiple sets of regularly arranged die positions (commonly 20, 32, 40, 48, or even more stations). Each die position can install a set of dies of a specific shape and size.

3，The turret can perform bidirectional, high-speed, and precise indexing rotation under the command of the CNC system, quickly rotating the required die to the processing position.

4，The turret is made of high-strength cast alloy steel and precision-machined in a single clamping operation.

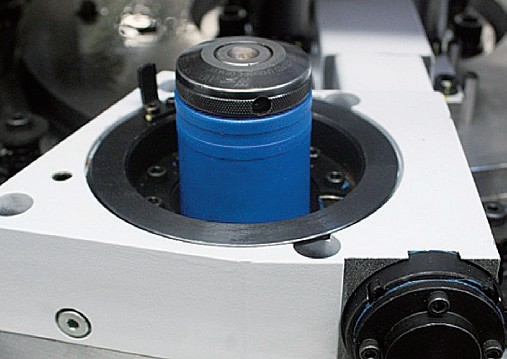

5，It boasts strong oxidation resistance and load-bearing capacity, excellent vibration damping and precise guiding performance.  This prevents problems such as die jamming and material sticking during the stamping process, and effectively solves the problem of excessive sheet metal deformation during high-density punching.Combined with precision-machined guide bushings, it significantly extends the actual service life of the mold.

Stamping Mechanism:

Usually composed of a main motor, crankshaft, connecting rod, and slider. The main motor drives the crankshaft to rotate, and the connecting rod converts the rotational motion into the vertical reciprocating linear motion of the slider, thereby providing stamping power.

High-end models often use hydraulic or servo motor direct-drive stamping methods, which can achieve more precise stamping control, faster speed, and more energy-efficient results (such as servo direct-drive CNC turret punch presses).

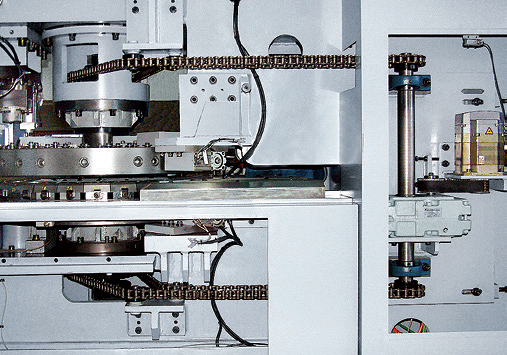

Turntable drive：

With a compact structure, reasonable load and power matching, and high transmission stability, it can quickly respond to system commands and transmit power. The precisely adjusted turret positioning device ensures accurate tool selection.

X/Y Axis Feeding System:

Composed of high-precision servo motors, ball screws, linear guides, and a clamping workbench.

Its function is to precisely move the processed sheet metal. The clamps fix the sheet metal in the Y-axis direction, and the entire workbench moves in the X-axis direction, or the workbench and clamps cooperate to achieve composite motion in the X and Y directions, precisely positioning the required punching location on the sheet metal under the punch.

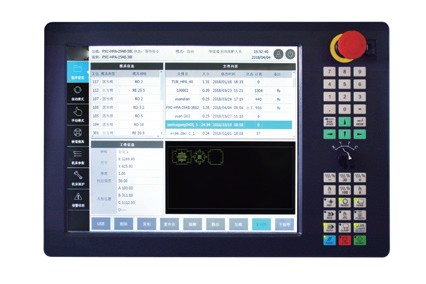

CNC System:

The "brain" of the equipment. Common systems include FANUC, SIEMENS, Rexroth, and domestic brands such as Estun and Huazhong CNC.

It receives machining programs generated by programming (usually directly converted from CAD drawings), precisely controlling all actions such as turret mold selection and rotation, X/Y axis movement trajectory and speed, punching frequency and stroke, etc., to achieve automated machining.

Mold Library and Automatic Repositioning Clamps:

Mold Library: Used to store spare molds not on the turret, and in conjunction with the automatic mold changing system, it can greatly expand processing capabilities.

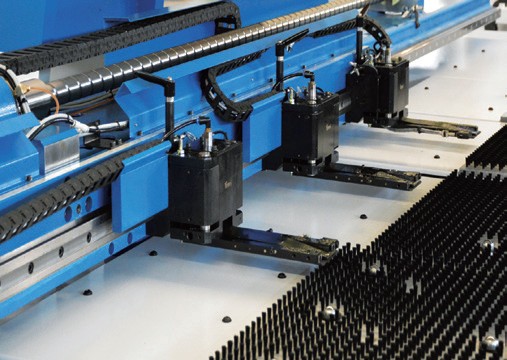

Automatic Repositioning Clamps: When the distance the sheet metal needs to move exceeds the clamp's travel range, the clamps will automatically release, pick up, move, and re-clamp the sheet metal, thus achieving uninterrupted processing of large-sized sheet metal.

Auxiliary Devices:

Lubrication System: Ensures smooth operation of all moving parts.

Cooling System: Dissipates heat from motors and drive components during long-term operation.

Scrap Removal Device: Collects scrap generated during punching.

Safety Protection: Light curtains, safety doors, etc., ensure operator safety.

II. Working Principle

The working principle of a CNC turret punch press can be summarized as a "mold selection - positioning - punching" cycle.

Programming and Preparation:

The operator uses dedicated programming software (such as AP100, Radan, etc.) on a computer to convert the CAD drawings of sheet metal parts into CNC code recognizable by the machine tool. The program defines the position of each hole (X/Y coordinates), shape (mold number), and processing sequence.

According to the program requirements, the corresponding upper and lower molds are installed in the designated positions on the turret. The sheet metal is placed on the worktable and clamped by the clamps.

Machining Cycle:

Step 1: Positioning. The CNC system controls the X/Y axis servo drives to move the sheet metal to the first target machining position.

Step 2: Mold Selection. At the same time, the CNC instructs the turret to rotate, quickly rotating the specified mold pair (upper and lower molds) to directly below the punch slide (waiting position).

Step 3: Punching. The slide moves the upper mold downwards, cooperating with the lower mold to punch the required hole shape in the sheet metal. The slide then returns.

Step 4: Repeat. The system quickly positions the next hole, rotates to select the next set of molds, and performs the next punching operation. This cycle continues until all features on the entire sheet are processed.

For large sheets, when the processing area exceeds the clamp's movement range, the automatic repositioning clamp will activate, release, move to a new reference position, re-clamp, and then continue processing.

Core Advantages:

Flexibility: By changing the dies in the turret and modifying the program, different shapes and sizes of parts can be processed, making it particularly suitable for multi-variety, small-batch production.

High Efficiency: Die rotation and sheet movement are synchronized, resulting in extremely short idle travel time, and punching frequencies can reach hundreds or even thousands of times per minute.

High Precision: Full servo drive and rigid structure ensure extremely high positioning accuracy (typically ±0.1mm) and repeatability.

III. Main Application Areas

CNC turret punch presses cover almost all industries that require sheet metal processing.  Their main application areas include:

Enclosure and Electrical Cabinet Industry:

The largest application market. Used for processing door panels, side panels, and mounting plates for various distribution boxes, control cabinets, server cabinets, network cabinets, and elevator control panels. Involves a large number of square holes, round holes, louvers, and knock-out holes (wiring holes).

Elevator Industry:

Processing elevator car wall panels, door panels, control cabinet panels, etc., requiring high flatness and appearance quality.

Architectural Decoration Industry:

Processing metal curtain wall panels, ceilings, partitions, and decorative panels, often requiring punching various complex artistic patterns and ventilation holes.

HVAC (Heating, Ventilation, and Air Conditioning) Industry:

Processing air conditioner casings, ventilation ducts, filter frames, and heat sinks, requiring a large number of louvers and mounting holes.

Kitchen Equipment and Food Machinery:

Processing stainless steel kitchenware, cabinets, workbenches, and food machinery casings, requiring materials to be mostly stainless steel, and ensuring a smooth cut surface.

Communication Equipment Industry:

Processing precision components such as 5G base station housings, chassis, enclosures, and filter cavities.

Automotive Industry:

Processing internal brackets, seat parts, battery tray assemblies, and other body accessories for automobiles.

Home Appliance Industry:

Processing metal casings and internal structural components for household appliances such as refrigerators, washing machines, air conditioners, and microwave ovens. New Energy Industry:

Processing of solar photovoltaic brackets, inverter cabinets, charging pile enclosures, etc.

Other Industries:

Office furniture (metal desks and cabinets), display racks, shelving, lighting fixtures, etc.

IV. Development Trends

High Speed and High Efficiency: Higher stamping frequency (HPM) and faster axis movement speed.

Integration: Integration with laser cutting heads (punching machine and laser cutting machine in one), completing multiple processes such as punching, forming, and cutting on a single machine.

Intelligentization: Integration of automatic loading and unloading systems, mold libraries, and finished product sorting systems, developing towards unmanned flexible manufacturing systems (FMS). Features include remote monitoring, predictive maintenance, and adaptive optimization of processing parameters.
